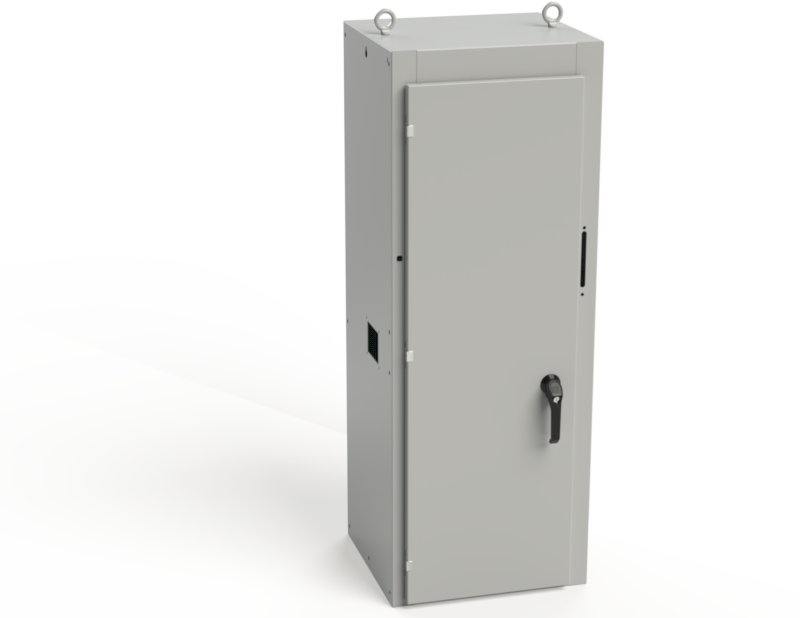

SCE-NEXD18A6
Product Specifications:
Part Number: SCE-NEXD18A6
Description: External disconnect Enc. 400/600 AMP
Height: 54.00"
Width: 20.00"
Depth: 18.00"
Price Code: P2
List Price: $1,238.20
Catalog Page: 999
Est. Ship Weight: 110.00 lbs
Construction
- 0.075 In. carbon steel.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Pour in place oil & water resistant gasket.
- Collar studs provided for mounting panels.
- Concealed hinge.
- Black die cast coinproof/padlocking handle on main door with black zinc die cast padlocking handle on slave door.
- Mounting hardware included.
Application
Designed for use with enclosures that require additional protection against Arc Flash. This enclosure can be used with an environmentally rated enclosure to isolate the main power supply. Increasing personal protection by preventing incidental contact or exposure to the high voltage arc flash and shock hazard, and potentially reducing the PPE level for the lower risk components of the main enclosure.
Finish
ANSI-61 gray powder coating inside and out.
Industry Standards - (IS4)
- NEMA Type 3R, 4, 12 and Type 13
- UL Listed Type 3R, 4 and 12
- CSA Type 3R, 4 and 12
- IEC 60529
- IP 66
