Product Specifications:

Part Number: SCE-N86XM4024SS6

Description: S.S. 1DR Enc. Both sides Solid w/ Disc.

Height: 86.00"

Width: 40.25"

Depth: 24.00"

Price Code: S2

List Price: $11,202.44

Catalog Page: 999

Est. Ship Weight: 465.00 lbs

Download CAD Package Add to Bill of Material Print Page

Construction

Both sides solid.
Provisions for flange mount disconnect.
.104 in stainless steel Type 316.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
Body stiffeners in large enclosures for extra rigidity.
Heavy duty lifting eyes anchor into reinforced top.
Concealed hinges.
3-point latching mechanism.
End of latch rods have ramp shoes for easier door closing.
Panel supports.
Pour-in-place oil & water resistant gasket.
Optional panels mount to collar studs.
Ground stud on door and body.
Provisions for light kit.
Holes plug provided to seal holes in bottom of enclosure.
Black zinc die cast coinproof/padlocking handle on door.

Application

Designed to house a variety of electrical and electronic controls and instruments, and most standard type disconnects. Provides protection from dust, dirt, water and oil. Provisions for optional surface mounting or rack mounting of almost any type of equipment. Disconnect switch (or circuit breaker) and operating mechanisms are not furnished with enclosure. The enclosures are extra deep for applications requiring more interior space. For outdoor application a drip shield and drain vent is recommended.

Finish

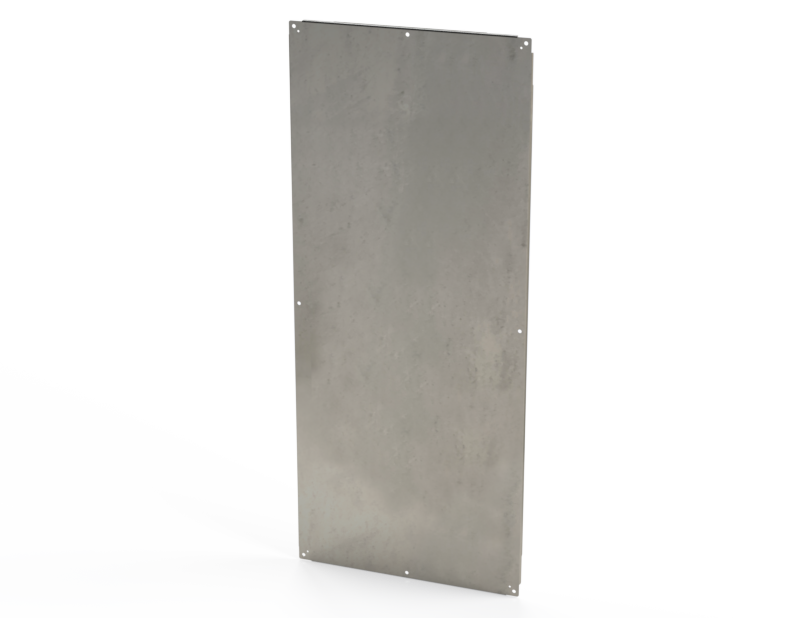

#4 brushed finish on all exterior surfaces. Optional subpanels powder coated white or galvanized.

Industry Standards - (IS6)
