Product Specifications:

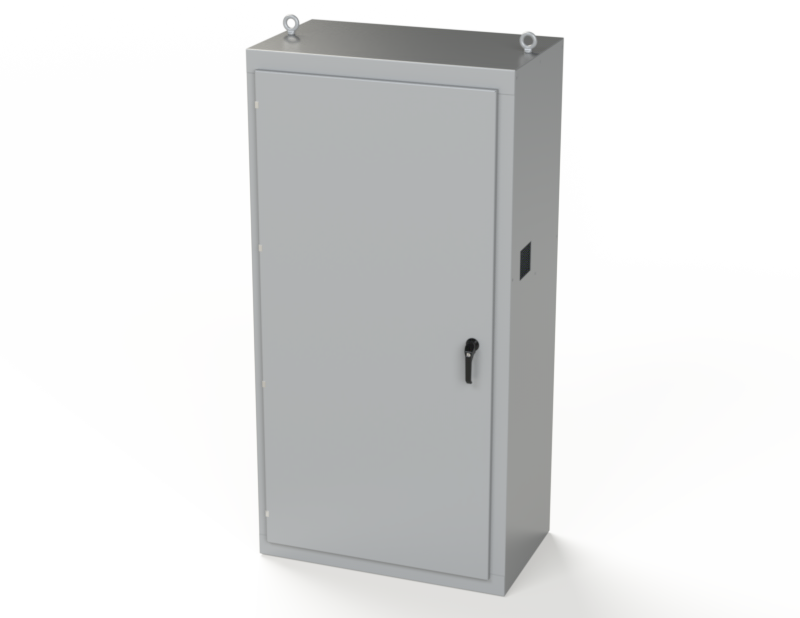

Part Number: SCE-N86EXD4018

Description: Both sides Solid- Provisions for EXD

Height: 86.00"

Width: 40.25"

Depth: 18.00"

Price Code: A2

List Price: $2,329.79

Catalog Page: 999

Est. Ship Weight: 330.00 lbs

SCE-NEXD18A6: Requires 3 additional mounting holes for installation

Request CAD Package Add to Bill of Material Print Page

Construction

Provisions for external disconnect.
.104" carbon steel.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
Body stiffeners in large enclosures for extra rigidity.
Heavy duty lifting eyes anchor into reinforced top.
Concealed hinges.
Black zinc die cast coinproof/padlocking handle on door.
3-point latching mechanism.
End of latch rods have ramp shoes for easier door closing.
Panel supports.
Pour-in-place oil & water resistant gasket.
Optional panels mount to collar studs.
Ground stud on door and body.
Provisions for light kit.
Holes plug provided to seal holes in bottom of enclosure.
Enclosures include provisions for system expansion.

Application

Designed to house a variety of electrical and electronic controls and instruments, and most standard type disconnects. Provides protection from dust, dirt, water and oil. Provisions for optional surface mounting or rack mounting of almost any type of equipment. Provisions for external disconnect.

Finish

SCE-09 Gray powder coated inside and out. Optional subpanels powder coated white or galvanized.

Industry Standards - (IS4)
