Product Specifications:

Part Number: SCE-N68REXD4018

Description: Right Bay - Provisions for EXD - Left side Open

Height: 68.00"

Width: 40.25"

Depth: 18.00"

Price Code: A2

List Price: $2,074.80

Catalog Page: 999

Est. Ship Weight: 999.00 lbs

SCE-NEXD18A: Requires 3 additional mounting holes

Download CAD Package Add to Bill of Material Print Page

Construction

Provisions for external disconnect.
.104" carbon steel.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
Body stiffeners in large enclosures for extra rigidity.
Heavy duty lifting eyes anchor into reinforced top.
Concealed hinges.
Black zinc die cast coinproof/padlocking handle on door.
3-point latching mechanism.
End of latch rods have ramp shoes for easier door closing.
Panel supports.
Pour-in-place oil & water resistant gasket.

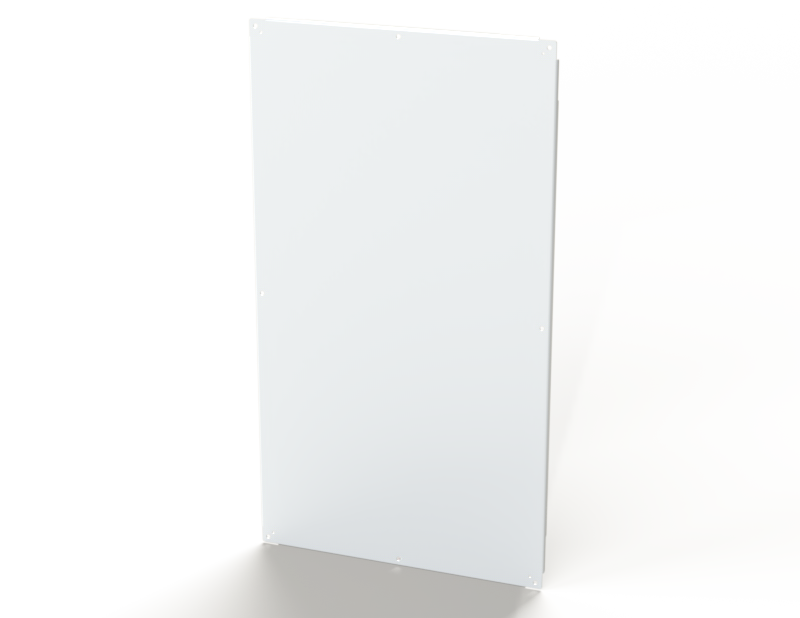

Optional panels mount to collar studs.
Ground stud on door and body.
Provisions for light kit.
Holes plug provided to seal holes in bottom of enclosure.
Enclosures include provisions for system expansion.

Application

Can be bolted together in any desired multiple door arrangement for maximum versatility. Designed to house a variety of electrical and electronic controls and instruments, and most standard type disconnects. Provides protection from dust, dirt, water and oil. Provisions for optional surface mounting or rack mounting of almost any type of equipment. Provisions for external disconnect. The enclosures are extra deep for applications requiring more interior space. For outdoor application a drip shield and drain vent is recommended.

Finish

SCE-09 Gray powder coated inside and out. Optional subpanels powder coated white or galvanized.

Industry Standards - (IS4)
