SCE-FA66

SCE-FA66

Product Specifications:


Part Number: SCE-FA66

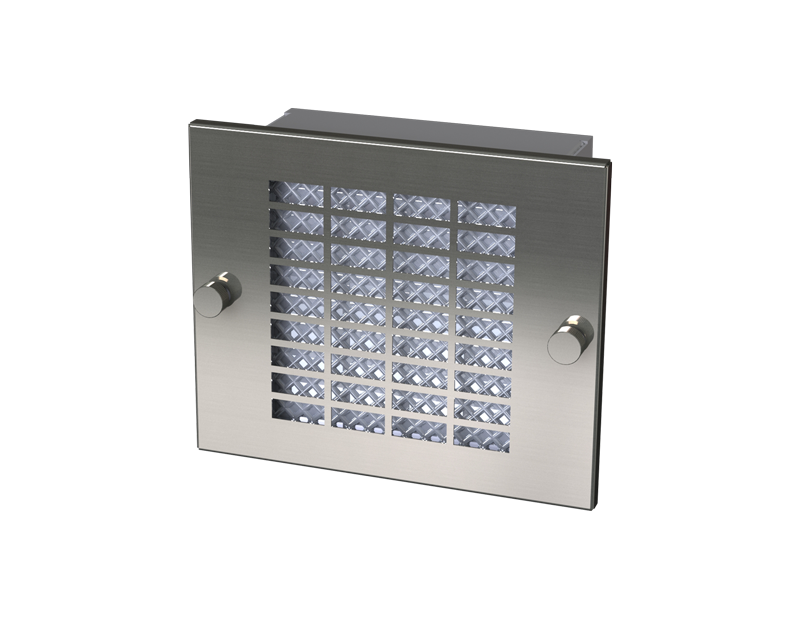

Description: Assembly, Fan Housing (6in.)

Height: 7.61"

Width: 8.88"

Depth: 3.75"

Price Code: P1

List Price: $445.74

Catalog Page: 399

Est. Ship Weight: 4.00 lbs

CFM: 140

Volt: 115

Download CAD PackageAdd to Bill of MaterialPrint Page

Construction

  • UL Listed Motor

Application

Designed for use in enclosures that require cooling but have limited space. Consists of a washable aluminum filter, steel air plenum, removable stainless steel grille, single phase fan, and approximately 14 inch of lead wire. Grille has captivated thumbnuts for easy access to the filter from the outside. Fan is available in 115 or 230 volt AC, 60/50 Hertz (HZ) single phase or 24 VDC. Air plenum is ANSI-61 gray urethane polyester powder coated.

Industry Standards - (IS17)

  • NEMA Not Applicable
  • UL Not Applicable
  • CSA N/A

Notes

For use with UL General purpose Type 1 applications
UL Listed Motor File # E137077 Mechatronics, E186492 PTI Pelko Motor
Motor w/ Thermal Protection

Optional Accessories


SCE-FGA66

SCE-FGA66
Assembly, Filter & Grille (6in.)

Fan Assembly
SCE-RF66

SCE-RF66
Filter, Replacement (6in.)

Replacement Filter
SCE-RH66

SCE-RH66
Hood, Rain

SCE-RH66SS

SCE-RH66SS
Hood, S.S. Rain

Similar Part Numbers

SCE-FA1010

SCE-FA1010
Assembly, Fan Housing (10in.)

SCE-FA1010-230

SCE-FA1010-230
Assembly, Fan Housing (10in.) 230v

SCE-FA1010-24VDC

SCE-FA1010-24VDC
Assembly, Fan Housing (10in.) 24VDC

SCE-FA44

SCE-FA44
Assembly, Fan Housing (4in.)

SCE-FA44-230

SCE-FA44-230
Assembly, Fan Housing (4in.) 230v

SCE-FA44-24VDC

SCE-FA44-24VDC
Assembly, Fan Housing (4in.) 24VDC

SCE-FA66-230

SCE-FA66-230
Assembly, Fan Housing (6in.) 230v

SCE-FA66-24VDC

SCE-FA66-24VDC
Assembly, Fan Housing (6in.) 24VDC
