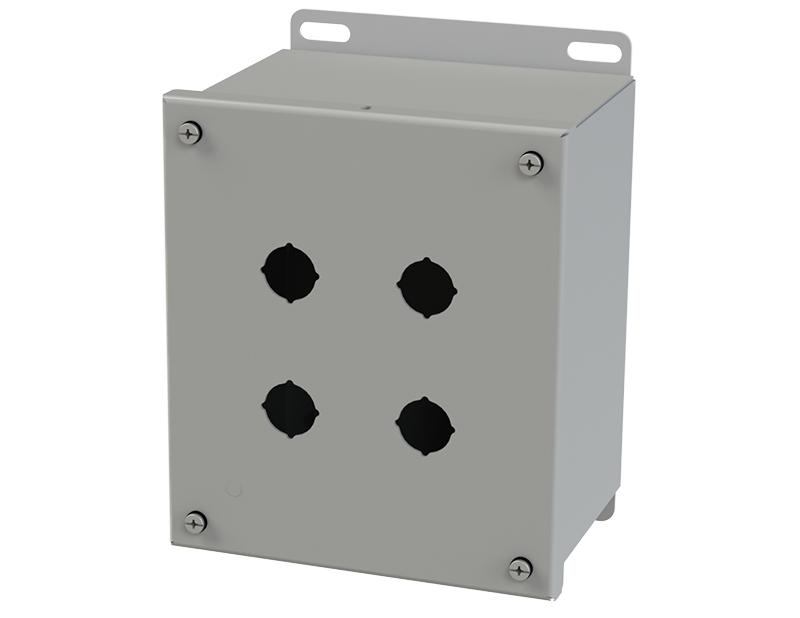

SCE-9PBXI
Product Specifications:
Part Number: SCE-9PBXI
Description: PBXI Enclosure
Height: 9.50"
Width: 8.50"
Depth: 4.75"
Price Code: A1
List Price: $116.64
Catalog Page: 62
Est. Ship Weight: 8.00 lbs
Construction
- 0.063 In. carbon steel.
- Continuously welded seams.
- Captivated cover screws thread into sealed wells.
- 4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Hole diameter is 0.87 In. (22.5mm).
- Immediate removal of cover is still permitted.
- Pour in place oil & water resistant gasket
- Welded mounting provision top and bottom of back.
Application
Designed to offer protection for oil-tight pushbuttons, switches, and pilot lights from dust, water, dirt and oil.
Finish
ANSI-61 gray powder coating inside and out.
Industry Standards - (IS2)
- NEMA Type 4, 12 and Type 13
- UL Listed Type 4 and 12
- CSA Type 4 and 12
- IEC 60529
- IP 66
