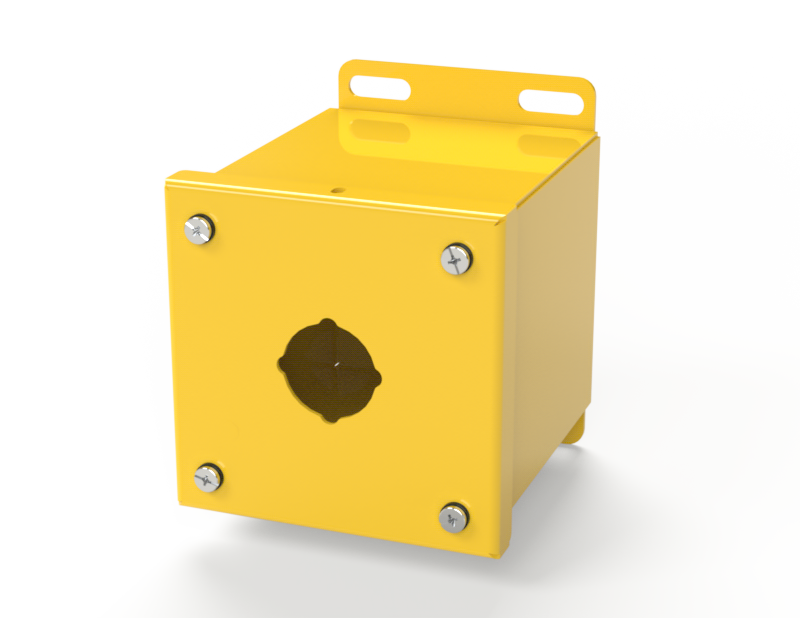

SCE-1PBX-RAL1018
Product Specifications:
Part Number: SCE-1PBX-RAL1018
Description: PBX Enclosure
Height: 4.00"
Width: 4.00"
Depth: 4.75"
Price Code: A1
List Price: $72.60
Catalog Page: 60
Est. Ship Weight: 3.00 lbs
Construction
- 0.063 In. carbon steel.
- Continuously welded seams.
- Captivated cover screws thread into sealed wells.
- 4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Hole diameter is 1.20 In. (30.5mm).
- Pour in place oil & water resistant gasket
- Welded mounting provision top and bottom of back.
Application
Designed to offer protection for oil-tight pushbuttons, switches, and pilot lights from dust, water, dirt and oil.
Finish
RAL 1018 Yellow powder coat inside and out.
Industry Standards - (IS2)
- NEMA Type 4, 12 and Type 13
- UL Listed Type 4 and 12
- CSA Type 4 and 12
- IEC 60529
- IP 66
