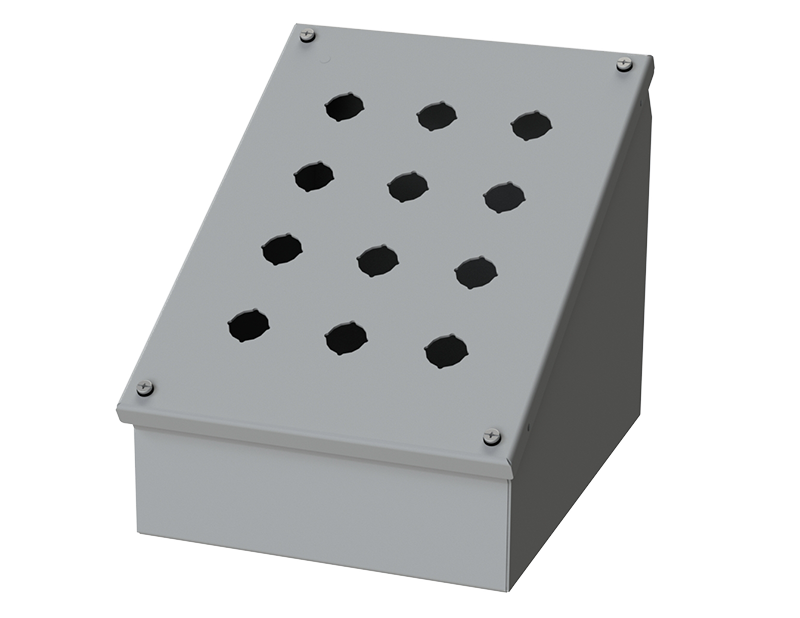

SCE-12SPBAI
Product Specifications:
Part Number: SCE-12SPBAI
Description: PBAI Enclosure
Height: 11.75"
Width: 8.50"
Depth: 9.00"
Price Code: A1
List Price: $177.66
Catalog Page: 72
Est. Ship Weight: 12.00 lbs
Construction
- 0.063 In. carbon steel.
- Continuously welded seams.
- Captivated cover screws thread into sealed wells.
- 4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Hole diameter is 0.87 In. (22.5mm).
- Immediate removal of cover is permitted.
- Pour in place oil & water resistant gasket
- Mounting feet included.
Application
Designed to offer protection for all standard brands of oil-tight pushbuttons, switches, and pilot lights where slanted surfaces are desired. It offers protection from dust, dirt, oil and water.
Finish
ANSI-61 gray powder coating inside and out.
Optional sub-panels are powder coated white.
Industry Standards - (IS2)
- NEMA Type 4, 12 and Type 13
- UL Listed Type 4 and 12
- CSA Type 4 and 12
- IEC 60529
- IP 66
